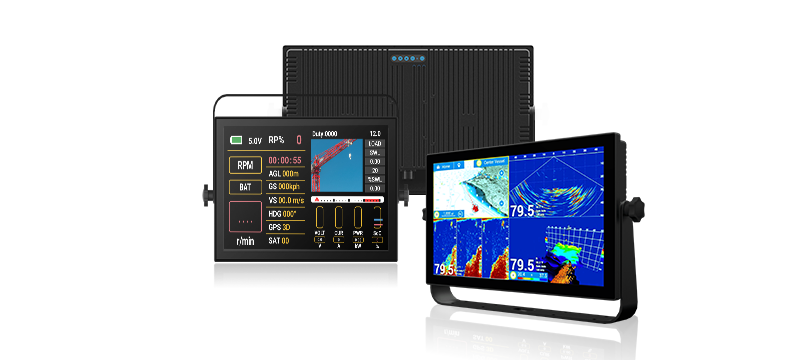

Marine FPD-Link Solutions
Navigating the Future: High-Speed FPD-Link Solutions
Industrial-Grade Video Transmission for Rugged Navigation & Monitoring
In the demanding marine environment, reliable data transmission is critical for safety and performance. Data Image’s FPD-Link solutions provide seamless, high-bandwidth connectivity for multi-display bridge consoles, ensuring crystal-clear visualization and robust operation even under extreme sea conditions. Experience zero-latency transmission designed to empower modern maritime technology.
Uncompressed High-Speed Video
Deliver zero-latency, pristine high-resolution visuals essential for critical real-time radar and navigation monitoring.
Extended Cable Reach
Ensure robust signal integrity over long coaxial or STP cables, vastly simplifying complex bridge console wiring.
Superior EMI/EMC Immunity
Advanced shielding and signaling technology prevents interference with highly sensitive vessel instruments and compasses.
Multi-Display Synchronization
Seamless daisy-chaining and high-bandwidth support for expansive ECDIS systems and synchronized multi-monitor arrays.

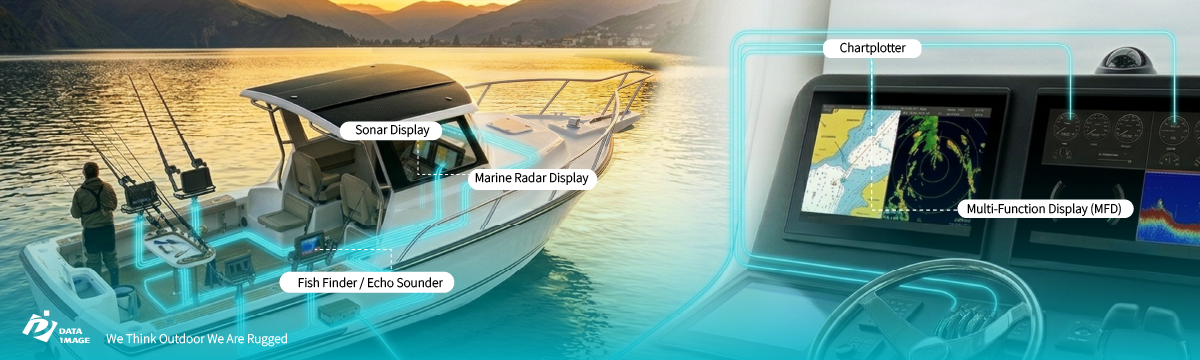

Ideal Applications
| Size | 19" (U-190) | 21.5" (U-215) | 24" (U-240) |
|---|---|---|---|
| Resolution | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 |
| Video Interface | 1×IP67 HDMI (High-Speed FPD-Link III / IV Optional) / 1×IP67 DC9-36V | ||
| Surface Treatment | Aluminum Alloy Panel with UV-Protection & Anti-Discoloration Treatment | ||
| Brightness (nits) | 1000 | 1000 | 1000 |
| Certifications | Designed for IEC 60945 / IACS-E10 Compliance | ||
| Touch Tech | PCAP with Salt-Water Rejection & Glove Support (1×IP67 USB) | ||
| Operating Temp | -20°C ~ 70°C | ||
* The specifications of the product may be modified for improvement without notice.
Our engineering experts are ready to assist with your FPD-Link and rugged marine display requirements.
