Smart Transit Rugged Display Solutions: Built for Stations, Gates & Bus Shelters

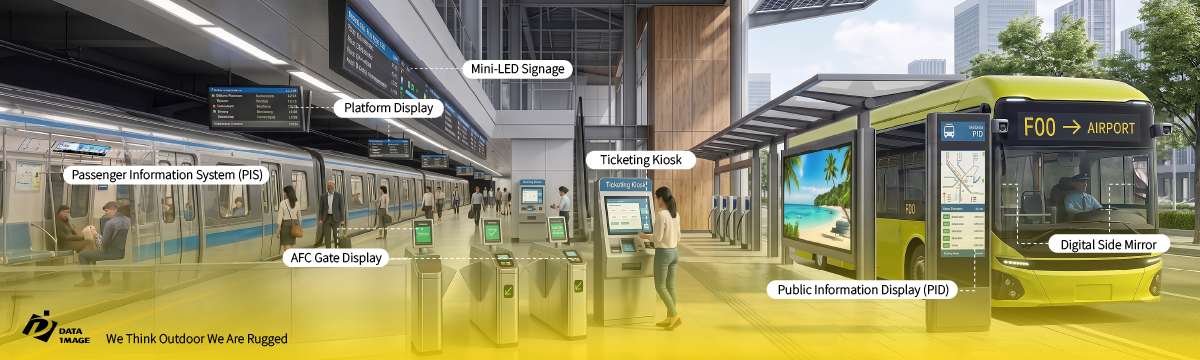

Rugged Transit Displays for Station PID, AFC Gate and Bus Shelter

As global transit systems upgrade toward smart, passenger-centric infrastructure, display reliability has become mission-critical. From platform information screens and automatic fare gates to outdoor bus shelters, every touchpoint must remain readable under direct sunlight, resistant to weather and vandalism, and stable across extreme operating temperatures around the clock.

This is where purpose-built rugged displays make the difference. Instead of adapting commercial-grade screens to a hostile environment, each display below is engineered from the ground up for its specific role in the transit network — matched to the brightness, sealing, and touch requirements that station platforms, fare gates, and outdoor shelters actually demand.

Core Application Solutions

Platform & Station PIS

• Ultra-high brightness (up to 2,500+ nits)
• Stretched / Bar-type LCD cuts
• Anti-Glare / Anti-Reflective optical bonding

AFC Fare Gate & Ticketing Kiosk

• IK08-IK10 vandal-proof cover glass
• Multi-touch with gloves / water rejection
• Wide operating temp (-30°C to +70°C)

Smart Bus Shelter & Outdoor PID

• IP55/IP66 fully sealed housing
• Intelligent auto-dimming sensor
• Thermal management for 24/7 sunlight exposure

→ Explore more Data Image solutions: Transit & Industrial Display Products

Key Technical Comparison

Core Feature	Engineering Specification	SI & Buyer Advantage
Sunlight Readability	Up to 2,500+ nits + Optical Bonding	Remains clearly legible even in direct outdoor sunlight of ≥1,500 nits, with optical bonding reducing surface reflectance to below 1%
All-Weather Ruggedness	IP55/IP66 & IK08-IK10 Vandal-Proof	Resists harsh weather, moisture, dust & vandalism
Environmental Validation	Tested to IEC 60068-2 Series (Thermal Cycling / Damp Heat / Salt Spray / Vibration)	Reliability validated to international standards, not just rated on paper
Thermal Reliability	Wide Temp (-30°C to +70°C), Fanless & Sensor Hub / Thermal Control	Reliable 24/7 operation across extreme climates
Custom Integration	Tailored dimensions, interfaces & covers	Seamless fit for custom kiosks, gates & enclosures

Advanced Optical Bonding for Outdoor Visual Performance

Optical bonding is a core strength of Data Image's engineering. Beyond eliminating internal air gaps for sharper contrast, our bonding process is built to withstand years of continuous outdoor sun exposure without degrading:

•	UV-Resistant, Anti-Yellowing Bonding Material: Maintains optical clarity and color accuracy under long-term direct sunlight exposure.
•	Anti-Fog / Anti-Condensation Sealed Lamination: Prevents internal moisture buildup and fogging caused by temperature swings and humidity.
•	Low-Reflectance AR (Anti-Reflective) Coating: Reduces surface reflectance to below 1%, maintaining clear legibility even in direct outdoor sunlight of ≥1,500 nits.
•	Image-Sticking Mitigation: Engineered to reduce image retention risk from prolonged static content display under continuous outdoor sunlight.

OEM/ODM Manufacturing Capabilities

Full In-House Design & Production: From optical bonding and mechanical tooling to strict environmental testing per the IEC 60068-2 series (thermal cycling, damp heat, salt spray, and vibration), Data Image manages the entire manufacturing process to ensure consistent quality and fast lead times for transit projects of any scale.

Global Support: A reliable B2B supply chain and dedicated technical support team assist transportation system integrators worldwide, from early-stage specification review through mass production and after-sales service.

Discuss Your Transit Display Project with Our Engineering Team

Our engineers will respond within 24 business hours with an initial feasibility assessment, followed by detailed drawings and a formal quotation.

Platform & Station PID

AFC Fare Gate / Kiosk

Smart Bus Shelter PID

Custom OEM/ODM

Ready to Upgrade Your Transit Display Systems?

Contact Data Image to discover how our rugged display engineering, OEM/ODM capabilities, and global supply chain can support your next station, gate, or bus shelter project.

#DataImage #TransitDisplay #StationPID #AFCGate #BusShelterPID #RuggedDisplay #IP66 #OpticalBonding #SunlightReadable #SmartTransportation #OEMODM #InnoTrans

*All images are for illustrative purposes only. Actual product may vary.
