S-156
PRODUCTS FEATURES
- Stainless-Steel Appearance for Enhanced Durability
- 1000 nits High Brightness
- -20˚C to 70˚C Operating Temperature
- Sunlight Readable
- 10-Point P-Cap Touchscreen
- IP65-Rated HDMI, USB (for touch), DC power Interfaces
- VESA Mount for Flexible Installation
- IP65 whole unit – Water & Dust Resistant
- IK10 (Available as a Customized Solution)
Built Tough. Built to Last.
Stainless Steel Displays for the Industry's Harshest Environments
Standard displays don't survive on factory floors, food and beverage production lines, or outdoor kiosks exposed to dust, moisture, and extreme temperatures. Our Stainless Steel Monitor series is built for exactly these conditions — a brushed 304 stainless steel enclosure, IP65-rated protection across the entire unit including HDMI, USB, and DC power connectors, and reliable performance across a wide range of climate conditions. Every configuration can also be tailored to your specific environment and application. Whether it's deployed on a production line, an outdoor kiosk, or a piece of industrial equipment, this series is engineered to keep working when standard displays fail.

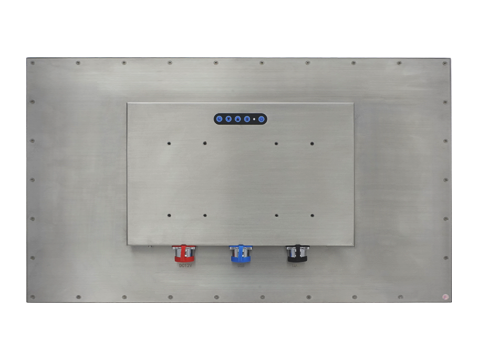

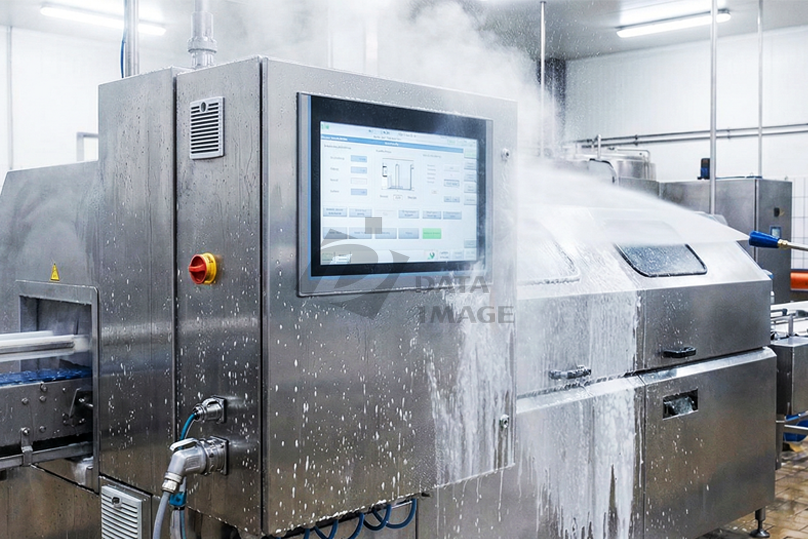

IP65-Rated, Front to Back

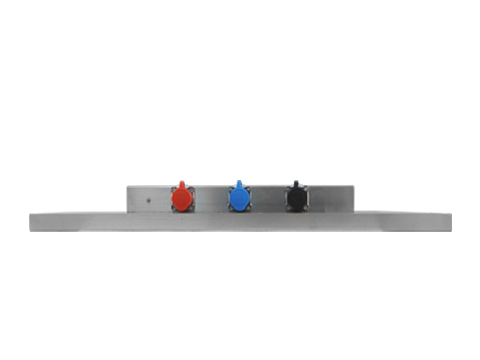

Every unit in this series is IP65-rated as a complete assembly — not just the front bezel. The HDMI, USB, and DC power connectors are individually IP65-sealed, keeping dust and splashing water out of every entry point. Built for environments with regular cleaning, airborne particulates, or unpredictable moisture, without compromising day-to-day reliability.

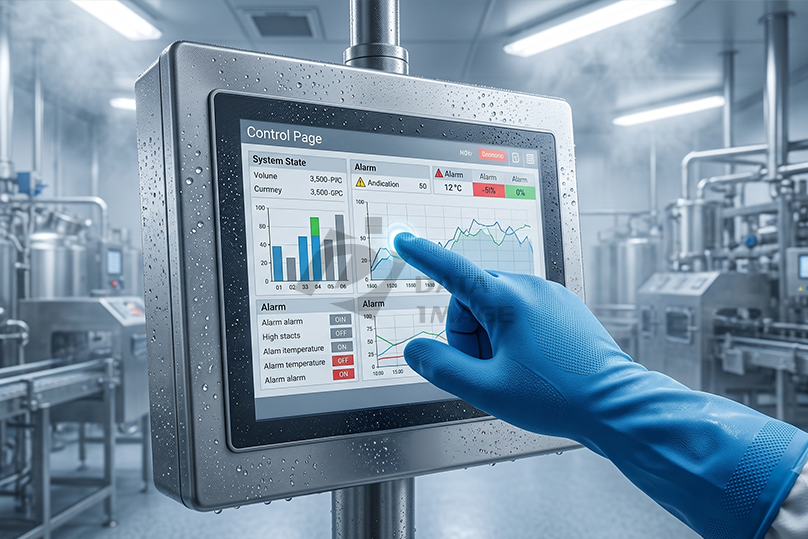

A 10-point projected capacitive (P-Cap) touchscreen delivers smooth, responsive multi-touch performance even with gloved hands or in humid conditions. A 6H-hardness, anti-glare surface resists scratching from daily handling, with an anti-bacterial coating available for hygiene-sensitive environments.
Industrial-Grade Wide Temperature Support
From polar cold to desert heat, this series is engineered for stable, reliable operation across extreme climate conditions — whether deployed in sub-zero outdoor sites or under sustained high-heat exposure. Combined with a high-brightness panel, it stays clearly readable even under direct sunlight, with no dimming or washout. Wide-temperature configurations can also be tailored to meet even more demanding site requirements.

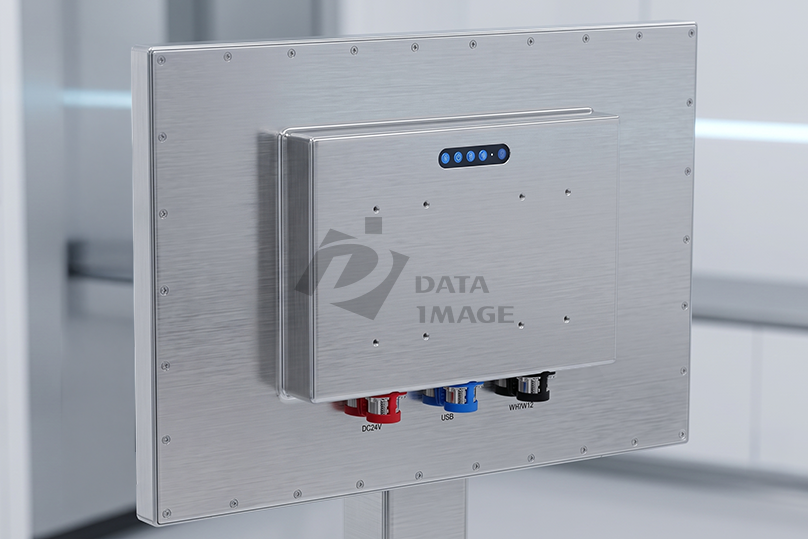

VESA-Ready, Brushed Stainless Steel Housing
A brushed 304 stainless steel enclosure resists scratching and corrosion while giving the display a clean, industrial-grade appearance. The standard VESA 75/100 mounting pattern makes it easy to integrate into existing panel or arm-mount designs — no custom bracketing required.
CE Certified —
Compliant with EU electromagnetic compatibility and safety standards
FCC Certified —
Meets U.S. electromagnetic interference regulations
IK10 Impact Resistance —
Available as a customized option for sites requiring vandal-resistant housing
Display
Model Name
S-156
Size (inch)
15.6"
Resolution
1920x1080
Aspect Ratio
16:9
Brightness (nits)
1200
Color Support
16.7M
Contrast Ratio
800:1
Viewing Angle
85/85(H), 85/85(V)
LED Life time
50,000 hrs
Direction
landscape
Touch Screen
Touch Screen Type
Projected Capacitive Touchscreen
Surface Hardness
6H
Transparency
≧82%
Sureface Treatment
Anti Glare,Anti Bacteria (optional)
Environment
Operating Temperature
-20℃~70℃
Storge Temperature
-30℃~80℃
Humidity
Up to 90% at all relevant temperatures, non-condensing
Shock
GB2423.5
Vibration
GB/T 2423.10-2019
IP Rating
IP65
EMC Compliance
CE/FCC
System
I/O Port
IP65 HDMI x1, IP65 USB x1(USB is reserved for the connection to enable touch usage only), IP65 12V DC Jack x1
OSD Function Keys
Keys:Power/Menu/Up/Down/Return
Menu Functions
Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset
Power
DC24V,max power:32W
Mechanical
Installation
VESA mount 75/100
Material
Stainless steel 304
Surface treatment
Surface brushed finish for scratch resistance
Color
Silver
Cooling System
Passive - Fanless
