U-190
PRODUCTS FEATURES
- IP67-Rated Design for Water and Dust Protection
- 1000 nits High Brightness
- -20˚C to 70˚C Operating Temperature
- Sunlight Readable
- 10-Point P-Cap Touchscreen
- IP67-Rated HDMI, USB (for touch), DC power Interfaces
- U-Stand, VESA Mount or Panel Mount for Flexible Installation
- IK10 (Available as a Customized Solution)
Display
Model Name
U-190
Size (inch)
19"
Resolution
1280x1024
Aspect Ratio
5:4
Brightness (nits)
1000
Color Support
16.7M
Contrast Ratio
1000:1
Viewing Angle
89/89(H), 89/89(V)
LED Life time
50,000 hrs
Direction
landscape
Touch Screen
Touch Screen Type
Projected Capacitive Touchscreen
Surface Hardness
6H
Transparency
≧85%
Sureface Treatment
Anti Glare
Environment
Operating Temperature
-20℃~70℃
Storge Temperature
-30℃~80℃
Humidity
Up to 90% at all relevant temperatures, non-condensing
Shock
GB2423.5
Vibration
GB/T 2423.10-2019
IP Rating
IP67
EMC Compliance
CE/FCC
System
I/O Port

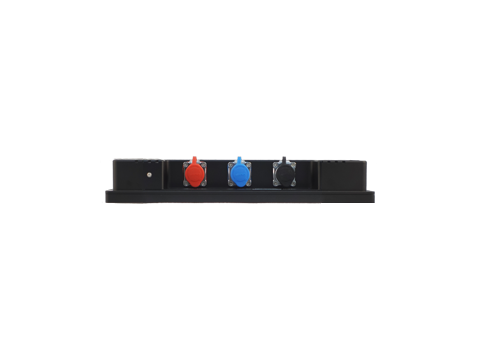

IP67 HDMI x1, IP67 USB ×1(USB is reserved for the connection to enable touch usage only), IP67 DC9-36V x1
OSD Function Keys
Keys:Power/Menu/Up/Down/Return
Menu Functions
Brightness, Contrast, Screen Setting, Color Temp, OSD Language,
Auto Adjust, Reset
Power
DC 9-36V, max power 25W
Mechanical
Installation
VESA mount 75/100; Panel Mount
Material
Aluminum alloy panel + fully milled housing
Surface treatment
Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment
Rear housing: powder coated
Color
Black
Cooling System
Passive - Fanless
