Display
Model Name
F-156
Size (inch)
15.6"
Resolution
1920x1080
Aspect Ratio
16:9
Brightness (nits)
1200
Color Support
16.7M
Contrast Ratio
800:1
Viewing Angle
85/85(H), 85/85(V)
LED Life time
50,000 hrs
Direction
landscape
Touch Screen
Touch Screen Type
Projected Capacitive Touchscreen
Surface Hardness
Transparency
≧82%
Sureface Treatment
Anti Glare,Anti Bacteria (optional)
Environment
Operating Temperature
-30℃~80℃
Storge Temperature
-30℃~80℃
Humidity
Up to 90% at all relevant temperatures, non-condensing
Shock
Vibration
IP Rating
IP66
EMC Compliance
CE/FCC
System

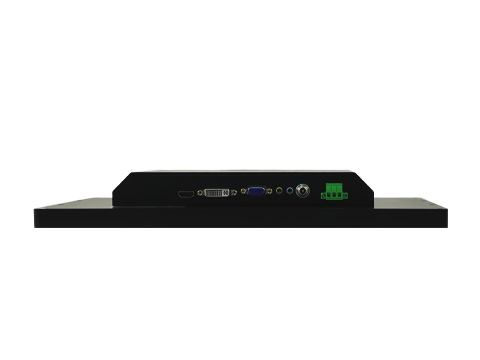

I/O Port
24V DC; HDMIx 1; DPx 1; VGAx 1;USB x 1 (USB is reserved for the connection to enable touch usage only)
OSD Function Keys
Keys:Power/Menu/Up/Down/Return
Menu Functions
Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset
Power
DC24V,max power:32W
Mechanical
Installation
Panel Mount; VESA mount 100
Material
Mental
Surface treatment
Color
Black
Cooling System
Passive - Fanless
