R-320
PRODUCTS FEATURES
- IP65 (Front) for Water and Dust Protection
- -30˚C to 80˚C Operating Temperature
- Up to 2500 nits High Brightness Display for Outdoor and Industrial Use
- Sunlight Readable
- 10-Point P-Cap Touchscreen
- IK10 (Available as a Customized Solution)
- Heat Management by Active Cooling System
Display
Model Name
P-320
Size (inch)
32"
Resolution
1920x1080
Aspect Ratio
16:9
Brightness (nits)
1500(2500 optional)
Color Support
16.7M
Contrast Ratio
1200:1
Viewing Angle
170/170
LED Life time
70K
Direction
Portrait
Touch Screen
Touch Screen Type
Projected Capacitive Touchscreen
Surface Hardness
6H
Transparency
≧85%
Sureface Treatment
Anti Glare
Environment
Operating Temperature
-30℃~80℃
Storge Temperature
-30℃~80℃
Humidity
Up to 90% at all relevant temperatures, non-condensing
System

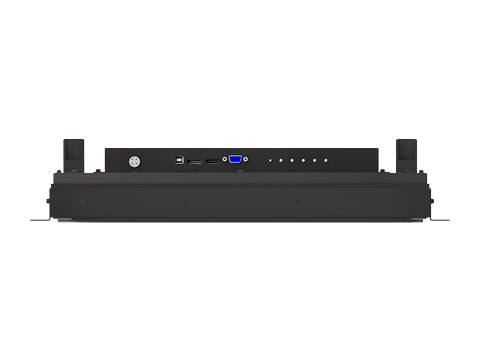

I/O Port
VGAx1,DVIx1,HDMIx 1; USB x 1 (USB is reserved for the connectionto enable touch usage only); 24V DC jack x 1
OSD Function Keys
Keys:Power/Menu/Up/Down/Return
Menu Functions
Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset
Power
DC24V,max power:90W(150W Optional)
Mechanical
Installation
Material
Aluminum alloy panel + fully milled housing
Surface treatment
Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment, Rear housing: powder coated
Color
Black

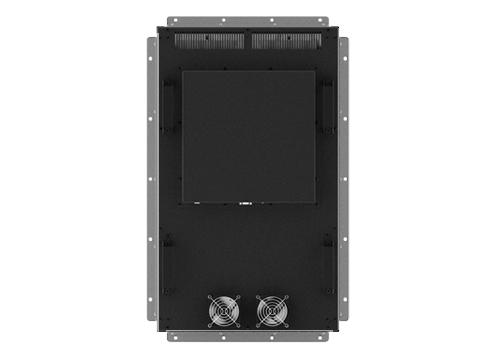

Cooling System
Active - temperature controlled fan
