Outdoor Monitor Display solutions are widely used in outdoor equipment and public information systems, while Outdoor Public Display solutions are commonly found in transportation hubs, EV charging stations, smart cities, and public information displays.
Unlike indoor monitors, outdoor displays must handle sunlight, rain, dust, temperature changes, and long operating hours. This guide covers key applications, environmental challenges, and specifications to consider when choosing an outdoor display.
|
|
Where Are Outdoor Monitor Displays Used? 6 Common Outdoor Public Display Applications
Outdoor Monitor Display solutions are used across a wide range of outdoor, semi-outdoor, and high-ambient-light environments. Outdoor Public Display solutions are particularly common in high-traffic public spaces, including transportation hubs, smart city infrastructure, and large-format digital signage.
Common applications include transportation, outdoor retail and self-service systems, EV charging, industrial and public infrastructure, smart cities, and financial self-service equipment.
|
|
1. Transportation & Passenger Information
Bus stops, railway stations, metro stations, airports, and parking facilities rely on outdoor displays for schedules, directions, passenger information, and parking guidance. Because these systems often operate for long hours and may be exposed to changing weather conditions, readability and environmental reliability are important considerations.
|
|
|
2. Outdoor Retail & Self-Service Systems
Outdoor kiosks, ordering terminals, fuel station displays, and other self-service equipment often require both clear visuals and reliable touch performance. Depending on the environment, manufacturers may also need to consider wet-finger operation, glove use, raindrop interference, and visibility under strong ambient light.
|
|
|
3. EV Charging Stations
EV charging stations are another major application for Outdoor Monitor Displays. AC chargers, DC fast chargers, payment terminals, and charging status displays all rely on screens to guide users through charging and payment processes. Since these systems are commonly installed outdoors, they may require high-brightness displays, waterproof protection, wide-temperature components, optical bonding, and outdoor-ready touch technologies.
|
|
|
4. Industrial & Public Infrastructure
Outdoor displays are also used in industrial HMIs, factory equipment, energy facilities, water treatment systems, airports, and ports. For these applications, operating temperature, thermal management, system reliability, and mechanical integration are often just as important as screen size and resolution.
|
|
|
5. Smart Cities & Outdoor Public Displays
Smart cities depend on real-time information, making Outdoor Public Display solutions an important part of modern urban infrastructure. Smart Information Kiosks, Digital Wayfinding systems, Smart Traffic Displays, and Public Information Displays can provide directions, traffic updates, city information, and public services. With touch functionality, these systems can go beyond one-way information delivery to support interactive searches and self-service applications.
|
|
|
6. Financial & Ticketing Self-Service Systems
Outdoor ATMs, payment terminals, ticketing machines, and banking kiosks also require displays that can support long operating hours and frequent public interaction. For public environments, reinforced cover glass and mechanical protection may also be required to reduce damage caused by impact or vandalism.
|
|
What Challenges Do Outdoor Monitor Displays Face?
Outdoor Monitor Displays face more than just bright sunlight. Temperature changes, moisture, dust, UV exposure, physical impact, and touch conditions can all affect performance.
Sunlight & Reflection
Sunlight & Reflection
High brightness alone may not guarantee good outdoor visibility. Strong reflections can still make a screen difficult to read. For this reason, high-brightness LCD panels are often combined with Optical Bonding and anti-reflective treatments to reduce reflection and improve image clarity.
Temperature Changes
Temperature Changes
Outdoor equipment can experience significant temperature differences between daytime and nighttime. Wide-temperature components, aluminum backlights, heat sinks, fans, and other thermal solutions can help manage heat and support stable operation under demanding environmental conditions.
Rain, Dust & Public Environments
Rain, Dust & Public Environments
Depending on the installation, Outdoor Monitor Displays may require IP65 or IP66 protection against water and dust. Outdoor Public Displays installed in transportation hubs or other high-traffic locations may also use reinforced glass and IK-rated protection to reduce the risk of damage from impact.
Outdoor Touch Performance
Outdoor Touch Performance
Outdoor touchscreens must work under conditions that rarely occur indoors. PCAP touch solutions can be tuned to support wet-finger operation, glove use, multi-touch, raindrop rejection, and active noise filtering, making them suitable for EV charging stations, kiosks, and industrial HMIs.
|
4 Key Outdoor Monitor Display Features & Benefits
Outdoor display specifications vary by product and application, but most solutions focus on four major areas.
|
Sunlight Readability
|
|
|
Depending on the environment, outdoor displays can be configured with brightness levels of around 1,000–2,500 nits or higher. Combined with Optical Bonding and anti-reflective treatments, these displays can improve readability under strong ambient light. Some applications may also require Sunglass Readable technology for users wearing polarized sunglasses.
|
|
Wide-Temperature Operation
|
|
|
Some Outdoor Public Displays support wide operating temperature ranges such as -30°C to 85°C. When combined with appropriate thermal design, IP protection, and UV-resistant materials, these systems can support outdoor transportation, charging, and self-service applications.
|
|
Rugged Protection
|
|
|
Public displays may be exposed to frequent use, impact, and vandalism. Depending on project requirements, solutions can incorporate IK10-rated reinforced glass, anti-shock structures, anti-shattering protection, or vandal-resistant designs.
|
|
Outdoor Touch Capability
|
|
|
For interactive applications, touch performance should match real-world operating conditions. Wet Touch, Glove Touch, multi-touch, and raindrop rejection can help maintain reliable interaction across different outdoor environments.
|
|
|
Outdoor Monitor Display Sizes & Specifications: How to Choose
|
|
There is no single standard size for an Outdoor Monitor Display. Selection depends on viewing distance, information density, touch requirements, and installation space.
| Typical Size |
Common Applications |
| 10"–15" |
Self-service terminals, ticketing machines, compact information kiosks |
| 15"–22" |
ATMs, fuel stations, EV chargers, interactive equipment |
| 22"–32" |
Outdoor kiosks, passenger information displays, retail interactive displays |
| 32"+ |
Large public information displays, transportation hubs, plazas, outdoor digital signage |
| • |
➡ Small Displays for Close-Range Interaction: Displays from around 7" to 15.6" are commonly used in EV chargers, industrial HMIs, and self-service systems. Data Image's outdoor touch display portfolio includes 7", 8.4", 10.4", 12.1", 13.3", 15", and 15.6" options. Depending on the model, brightness ranges from approximately 1,000 to 1,500 nits, with operating temperature ranges of -30°C to 85°C. |
| • |
➡ Medium to Large Outdoor Public Displays: Larger displays such as 24", 27", and 32" are commonly used for public information, transportation systems, and digital signage. Data Image's outdoor display options in these sizes can provide brightness of around 1,500 nits, depending on the model. |
|
When selecting an Outdoor Monitor Display, key specifications to review include brightness, operating temperature, IP and IK ratings, optical bonding, touch technology, thermal design, and interface compatibility. |
|
Data Image Outdoor Monitor Display & Outdoor Public Display Solutions
|
|
For different Outdoor Monitor Display and Outdoor Public Display applications, Data Image offers solutions ranging from semi-outdoor open-frame monitors and rugged public information displays to large-format DOOH displays.
These solutions can integrate display technologies with PCAP Touch, Optical Bonding, Cover Glass, and application-specific mechanical designs to meet different project requirements.
*All images are for illustrative purposes only. Actual product may vary.

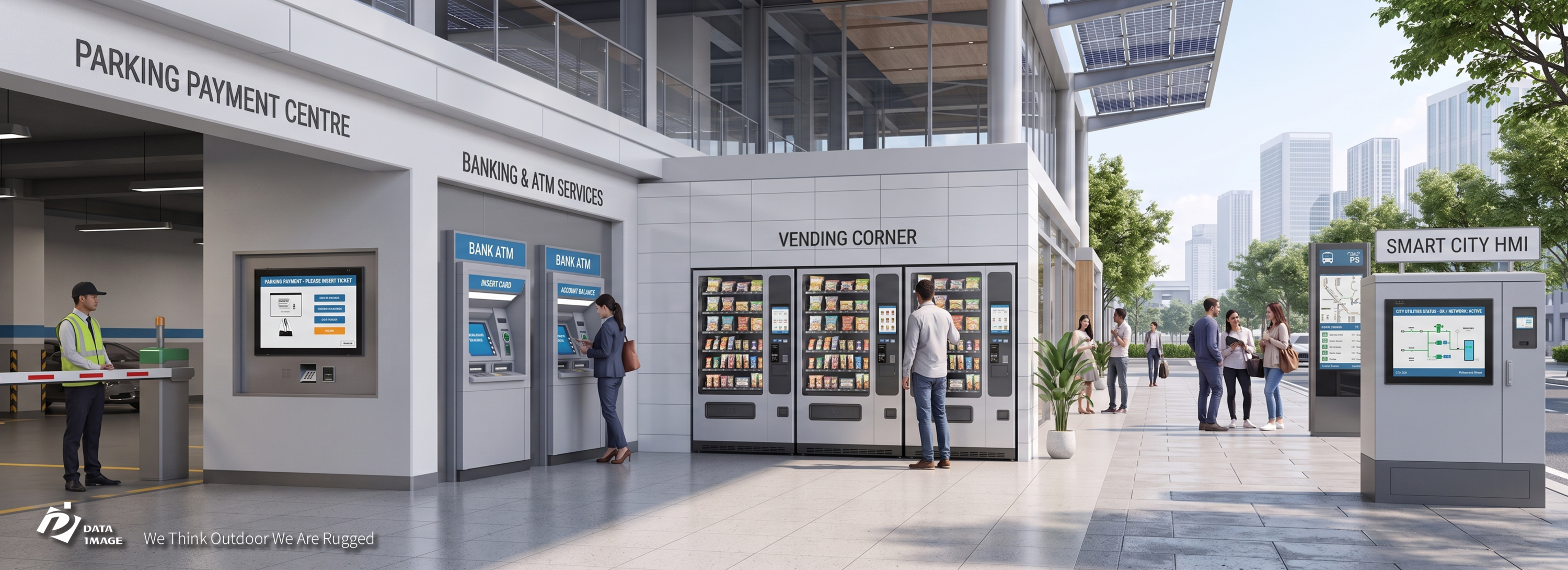

✔️ Industrial Open Frame Rugged Monitor
Designed for semi-outdoor embedded applications, the Industrial Open Frame Rugged Monitor is available in sizes from 10.4" to 21.5".
It supports brightness up to 1,000 nits, operating temperatures from -30°C to 80°C, IP65 front-panel protection, and multiple interfaces including VGA, HDMI, DVI, and audio.
Typical applications include parking payment systems, industrial HMIs, vending machines, ATMs, and banking equipment.
*All images are for illustrative purposes only. Actual product may vary.

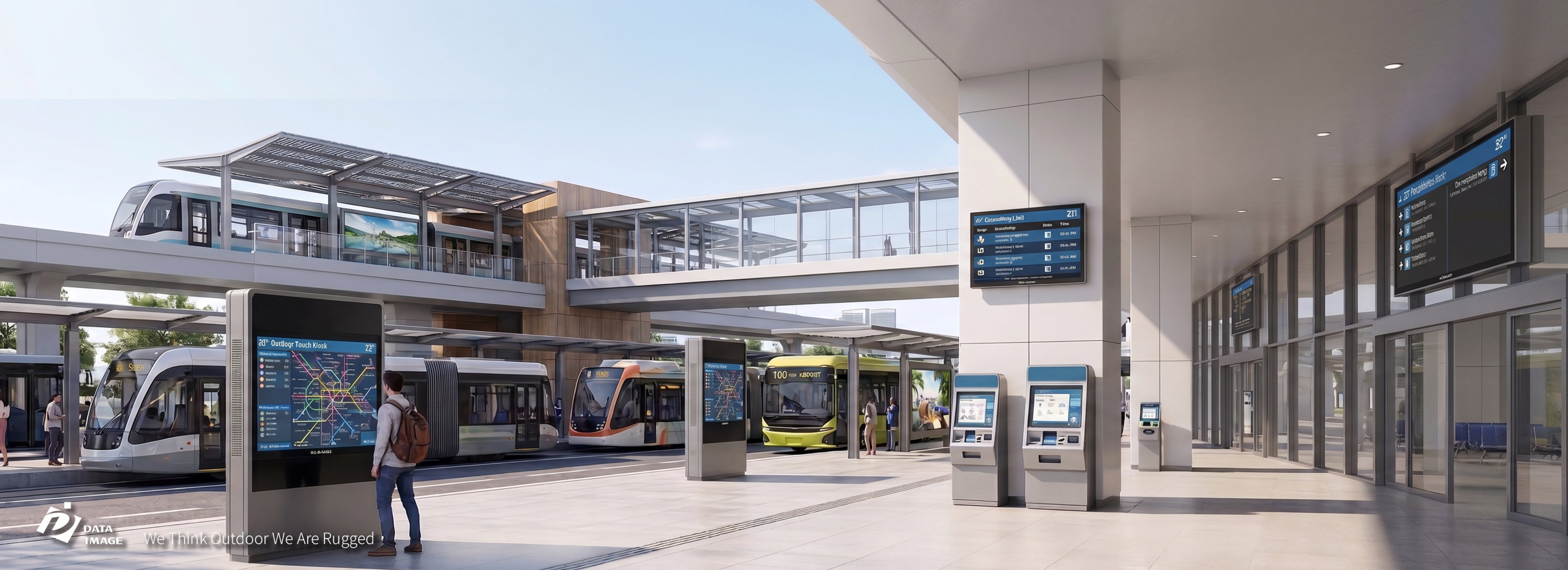

✔️ Rugged PID
For transportation hubs and other public environments, Data Image's Rugged PID is available in 21.5", 24", 27", and 32" sizes.
The series provides brightness up to 1,500 nits, operating temperatures from -30°C to 80°C, IP65 and IK10 protection, and a design target of up to five years of service life.
It can also be configured with UV/IR protection, 10-point PCAP touch, thermal management, and multiple mechanical options.
*All images are for illustrative purposes only. Actual product may vary.

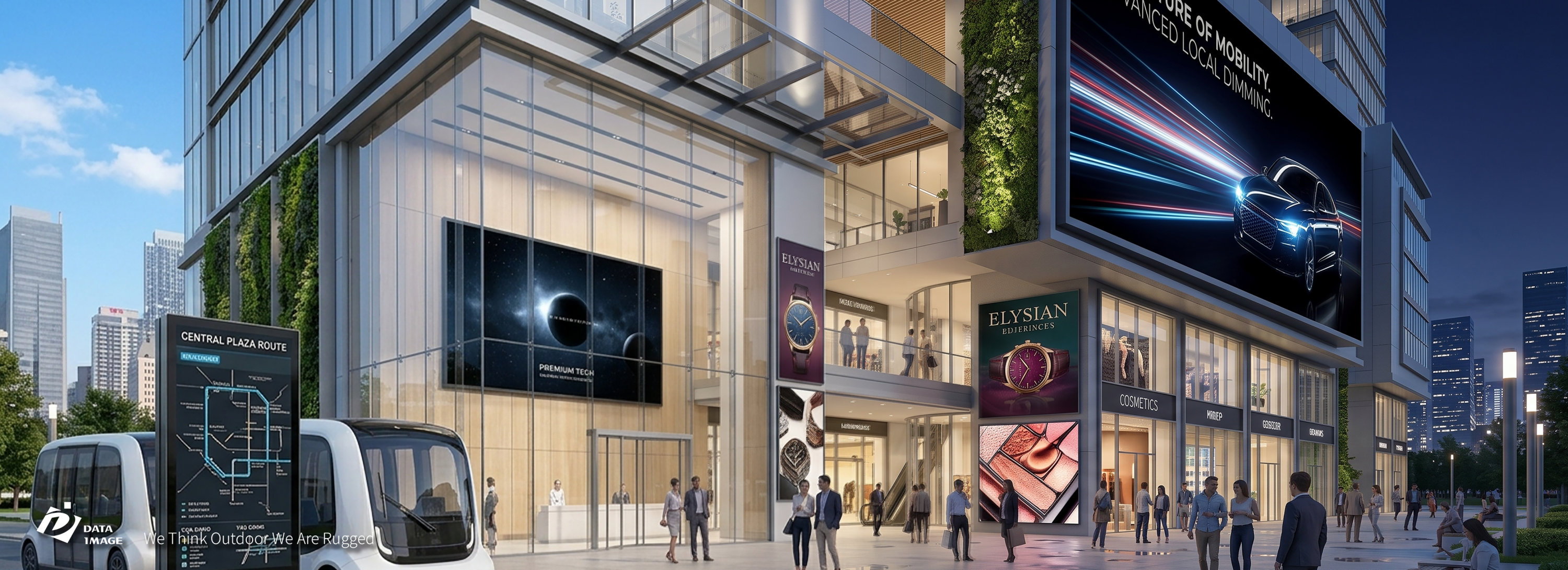

✔️ DOOH Display with Advanced Local Dimming
For larger Outdoor Public Display applications, Data Image offers DOOH Displays in 24", 32", 43", and 55" sizes.
Peak brightness can reach 3,000 nits, while Advanced Local Dimming helps improve contrast and reduce unnecessary backlight power consumption. The solution also supports IP65 and IK10 protection.
Depending on operating conditions, the Local Dimming design can reduce energy consumption by approximately 30%–50%.
Typical applications include transportation hubs, shopping centers, commercial spaces, and outdoor DOOH advertising.
*All images are for illustrative purposes only. Actual product may vary.

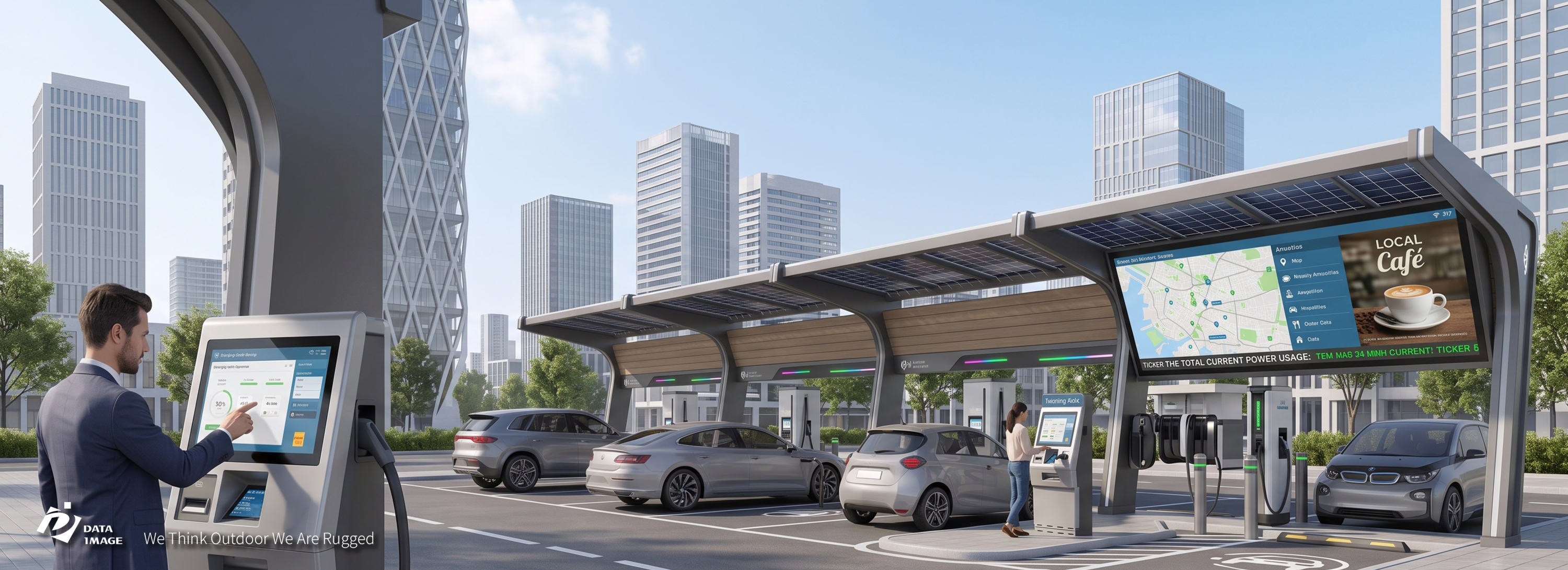

✔️ EVSE HMI Solution
For EV charging projects, Data Image also provides an integrated EVSE HMI Solution.
The solution combines an Optical Bonding Touch Module, LCD Controller Board, and computing mainboard. It supports brightness above 1,000 nits, Sunglass Readable technology, IK10-rated touch protection, IP66 front-panel protection, and operating temperatures from -35°C to 85°C. This allows EV charging system manufacturers to integrate display, touch, protection, and system functions within a single solution.
The best Outdoor Monitor Display is not necessarily the one with the highest specifications, but the one that fits the actual application. For an Outdoor Public Display, factors such as viewing distance, sunlight, temperature, touch operation, and installation conditions can all influence the final design.
From compact interactive displays to large-format public information systems, Data Image offers display, touch, Optical Bonding, and integration capabilities for different outdoor applications.
|
Planning your next EV charging, kiosk, transportation, or industrial display project?
Talk to Data Image to find the right display configuration for your application.
|
|
